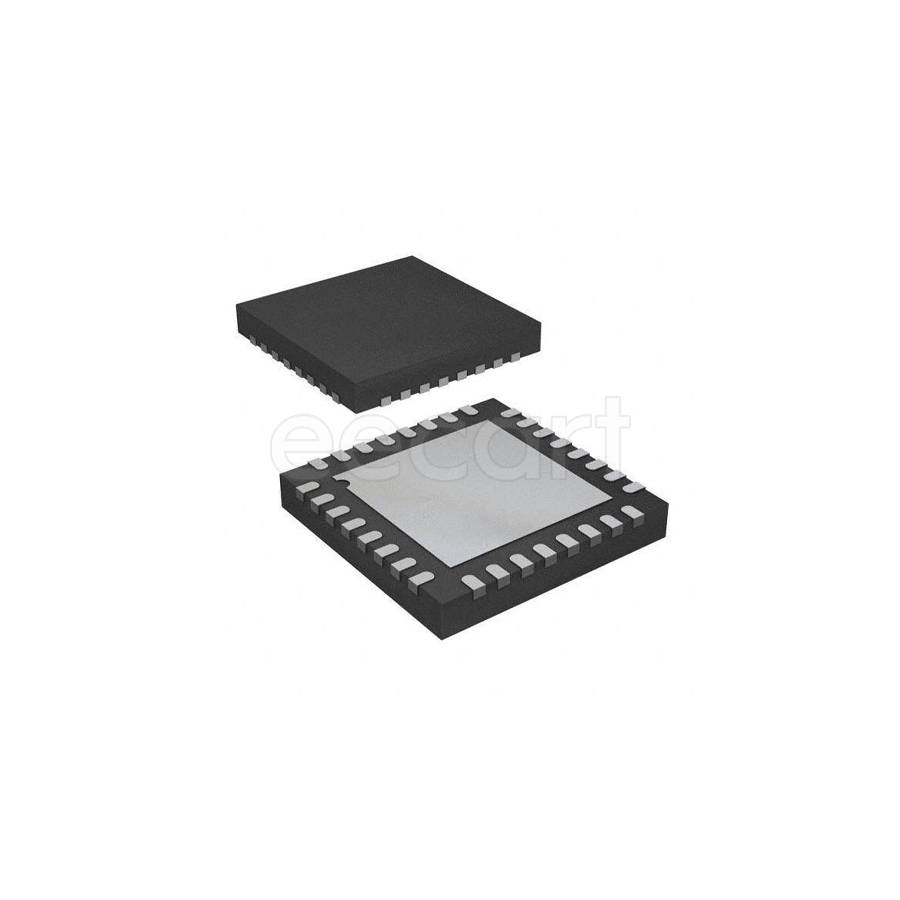

AD7124-4BCPZ
Manufacturer:
Analog Devices
Mfr.Part #:
AD7124-4BCPZ
Datasheet:
Description:
Analog to Digital Converters (ADCs) LFCSP-WQ-32 SMD/SMT number of channels:1 Number of Inputs:4, 7 3 B 19.2 ksps Core Architecture:Sigma-Delta
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 32 |
| Height | 800 µm |
| REACH SVHC | No SVHC |
| Interface | SPI |
| Lifecycle Status | Production (Last Updated: 3 weeks ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.8 V |
| Number of Channels | 1 |
| Slew Rate | 20 V/µs |
| Number of Bits | 24 |
| Input capacitance | 5.5 pF |
| Operating Supply Current | 5.6 mA |
| Quiescent Current | 2.8 mA |
| Supply Type | Analog, Digital |
| Sampling Rate | 19.2 ksps |
| Number of Converters | 1 |
| Settling Time | 1 µs |
| Dual Supply Voltage | 1.8 V |
| Max Junction Temperature (Tj) | 150 °C |
| Resolution | 3 B |
| Number of A/D Converters | 1 |
| Common Mode Rejection Ratio (CMRR) | 76 dB |
| Input Offset Voltage (Vos) | 1 mV |
| Power Supply Rejection Ratio (PSRR) | 95 dB |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) |
| RoHS | Compliant |
| Packaging | Tray |
| Features | PGA, Temperature Sensor |
| Analog Supply Voltage | 2.9 V to 3.6 V |
| Max Digital Supply Voltage | 3.6 V |
| Min Digital Supply Voltage | 1.65 V |
| Configuration | MUX-PGA-ADC |
| Input Type | Differential, Single-Ended |
| Interface Type(Data Interface) | SPI |
| Core Architecture(core/core processor) | Sigma-Delta |
| Reference Type | External, Internal |
| Number of Inputs | 4, 7 |
Stock: 707
Distributors
pcbx
pcbxUnit Price$8.27768
Ext.Price$8.27768
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.27768 | $8.27768 |
| 10 | $6.51661 | $65.16610 |
| 25 | $6.25569 | $156.39225 |
| 50 | $6.00521 | $300.26050 |
| 100 | $5.76476 | $576.47600 |
| 300 | $5.53394 | $1660.18200 |
| 500 | $5.31236 | $2656.18000 |
| 1000 | $5.09963 | $5099.63000 |
